Troubleshoot

Organized by failure phase, the lifecycle stage where the symptom surfaces. Work top-to-bottom: an earlier phase failing usually cascades into every later phase. Every entry has a real symptom (an error message, a runtime state, or a network response) and a runtime-verified fix. If you don't know which phase your problem is in, use the sidebar search or Ctrl-F the exact error text.

Before reading further, run this decision tree:

1. Is your dev server actually running at the port your Canvas URL points at? (curl http://localhost:PORT/ returns 200?) If not, start it.
2. Does studioSdk.init() run before any render? Check src/lib/contentstack.ts (or wherever). If not, see SDK initialization.

3. In DevTools on the Studio tab, open Network, then reload the composition. What's the status code of the request to your Canvas URL?

   • 200 and content returned: a Studio-side rendering issue. See Runtime render or Composition load.
   • net::ERR_BLOCKED_BY_LOCAL_NETWORK_ACCESS_CHECKS / blocked:mixed-content / blocked:private-network-access: browser blocking. See Studio project + canvas.
   • 401 / 403: auth. See SDK initialization.
   • Anything else: keep reading.

If your problem is package-install or TypeScript-config related, this is the phase.

Symptom: npm ERR! notsup Not compatible with your version of node/npm or an engine warning during npm install.

Cause: Studio SDK requires Node 18 or later.

Fix: upgrade Node.

node -v        # confirms current version
nvm install 20 # or 18+; nvm-preferred
nvm use 20

Reinstall: delete node_modules + lockfile, then npm install.

Symptom: npm install completes but emits npm WARN ERESOLVE unable to resolve dependency tree mentioning React or React DOM. At runtime the canvas app crashes with Invalid hook call or Cannot read properties of null (reading 'useContext').

Cause: two copies of React in the resolved tree. Studio-SDK peer-deps to react ^18 || ^19. If your app pins a different major or has react duplicated via a nested dep, two React runtimes ship.

Fix:

npm ls react       # must show exactly ONE line under root
npm ls react-dom   # same — exactly one line

If more than one appears, resolve via overrides in package.json:

{
  "overrides": {
    "react": "^18.3.0",
    "react-dom": "^18.3.0"
  }
}

Then rm -rf node_modules package-lock.json && npm install.

Symptom: SDK init throws stackSdk is required or apiKey is required. Or the canvas app boots but every content fetch 401s.

Cause: environment-variable prefix mismatch. Vite requires VITE_* prefixes for client-visible env. Next.js requires NEXT_PUBLIC_*. Astro requires PUBLIC_*. The bundler silently drops any prefix it doesn't recognize.

Fix: confirm the prefix matches your bundler, then confirm the values are populated in .env (not .env.local, not .env.production, the file the dev server actually reads):

# Vite
grep VITE_CONTENTSTACK_ .env

# Next.js
grep NEXT_PUBLIC_CONTENTSTACK_ .env

# Astro
grep PUBLIC_CONTENTSTACK_ .env

Full map at Prerequisites: Framework prefix map.

Restart your dev server after edits: bundlers snapshot env at startup, they don't hot-reload it.

Symptom: Module '"@contentstack/studio-react/rsc"' has no exported member 'StudioServerComponent' or Cannot find module '@contentstack/studio-react/rsc'.

Cause: older SDK version. The /rsc subpath entry ships from @contentstack/studio-react 1.4 or later.

Fix:

npm ls @contentstack/studio-react

Upgrade if below 1.4:

npm install @contentstack/studio-react@latest

Then re-run tsc --noEmit to confirm.

Handled in jsdom + JSON-RTE in Node. Short answer: htmlToJson needs a real DOM HTMLElement, not a string. Wrap it with jsdom in Node contexts.

If your problem is initStudio() errors, missing env vars, "SDK Not Initialized", or invalid stack keys / tokens before any composition loads, this is the phase.

studioSdk.init was never called, or it ran after useCompositionData first rendered.

Fix: Init must complete before any hook call reaches the SDK. The safest place is a shared module imported at app boot (usually src/lib/contentstack.ts) so React mounts no hook call before init finishes.

// src/lib/contentstack.ts — imported at app entry
import { studioSdk } from "@contentstack/studio-react";
studioSdk.init({ stackSdk, contentTypeUid: "compositions" });

Then import ./lib/contentstack in main.tsx / _app.tsx / app/layout.tsx before any component that uses useCompositionData.

studioSdk.init was called with no Delivery SDK instance.

Fix:

import Contentstack from "@contentstack/delivery-sdk";
import { studioSdk } from "@contentstack/studio-react";

const stack = Contentstack.stack({ … });
studioSdk.init({ stackSdk: stack, contentTypeUid: "compositions" });

variantAlias is not a valid studioSdk.init() config field. The SDK's Zod schema silently strips unknown keys, so the call doesn't throw. The variant never applies. Runtime-verified. UserConfig accepts only: stackSdk, contentTypeUid, locale, cslp, openInStudioButton, fetchComposition, fetchTemplateEntry.

Fix: Pass variantAlias per-fetch in the second arg (CompositionQueryOptions):

useCompositionData({ url }, { variantAlias: "holiday-2026" });
// or
await csStudio.fetchCompositionData({ url, searchQuery }, { variantAlias: "holiday-2026" });

See Variant aliases.

Stack API Key or Delivery Token is wrong, expired, or not set.

Fix:

1. In your stack, open Settings, then Tokens, then the Delivery Token edit screen.
2. Confirm your .env.local has the right values.
3. Restart your dev server: env vars are read at boot.

The content type UID is wrong, or doesn't exist in the stack.

Fix: Check Contentstack → Content Models → your CT → UID and pass that exact value to stack.contentType("...").

You wired the SDKs but no Studio project exists yet: the compositions content type hasn't been provisioned into your stack, OR the contentTypeUid value passed to studioSdk.init doesn't match the actual provisioned UID.

This is the expected error for the "installed but no project yet" state. It's not a broken install.

Fix:

1. Create the Studio project in app.contentstack.com (in Studio, open New Project, then link your stack). Provisioning creates the compositions content type.
2. Note the UID. In Studio, open your project, go to Settings, then Configuration, and read "Composition Content Type". If it isn't compositions, set the corresponding env var in .env.local.
3. Until a composition is published on a route you're hitting, wrap the fetch in try/catch and render a "no composition yet" placeholder. The 422 goes away once any composition is published.

The composition's connected content type UID in studioSdk.init doesn't match what Studio is writing into.

Fix: Confirm studioSdk.init({ contentTypeUid: "..." }) matches the Compositions CT in your stack. In Studio, open your project, go to Settings, then Configuration, and read "Composition Content Type".

If your problem is a Canvas iframe issue (project not loading in Studio UI, iframe blank/CORS/mixed-content/PNA localhost issues, section preview route not resolving, or HTTPS-in-localhost), jump here.

Studio is trying to open a section but doesn't know where your canvas route lives.

Fix:

1. Open your project, go to Settings, then Configuration, and set Canvas URL to your route path (e.g. /canvas).
2. Confirm that route exists in your app and mounts <StudioCanvas />.
3. See Section preview route.

Studio can't resolve the Base URL because no Environment + Language is picked.

Fix: Open your project, go to Settings, then Configuration, and pick both.

Your Canvas URL is / (or empty). Studio is loading the site root.

Fix: Change Canvas URL to a dedicated path like /canvas or /studio-canvas. Add the route in your app if it doesn't exist.

Your canvas route is mounting <StudioComponent /> (the template renderer for visitor routes) instead of <StudioCanvas />. Studio detects this and overlays guidance until you switch.

Fix: in the file your project's Canvas URL points at, replace the <StudioComponent /> import + render with <StudioCanvas />. The two are not interchangeable. <StudioCanvas /> self-mounts the section preview from the URL params Studio appends to the iframe, no props needed:

import { StudioCanvas } from "@contentstack/studio-react";

export default function CanvasRoute() {
  return <StudioCanvas />;
}

The overlay disappears on the next canvas reload. See Add the section preview route for the full canvas-route guide.

The route exists but doesn't mount <StudioCanvas />.

Fix: Add the component:

import { StudioCanvas } from "@contentstack/studio-react";
export default function CanvasRoute() {
  return <StudioCanvas />;
}

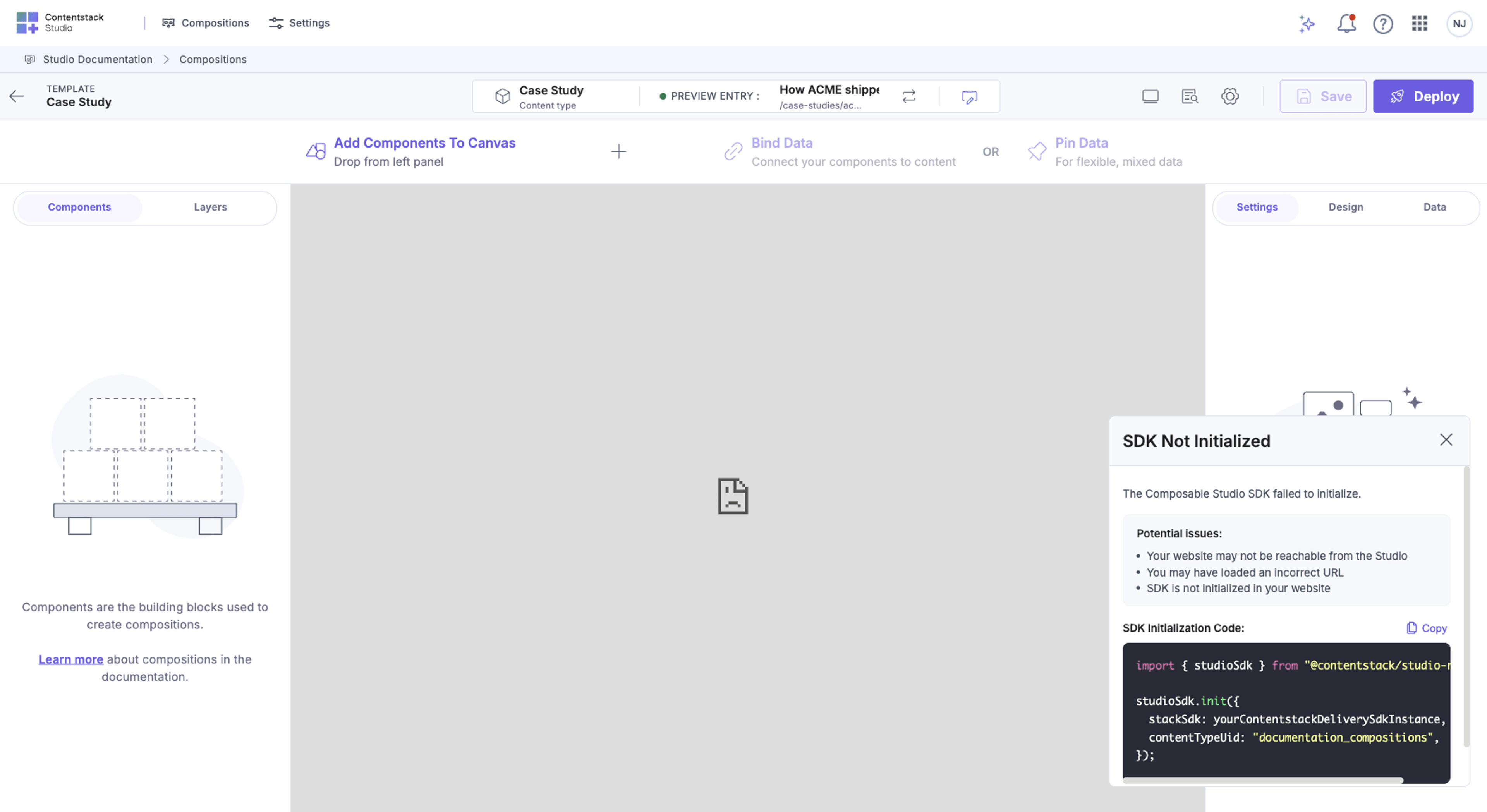

You'll hit this only when your Canvas URL points at localhost (or 127.0.0.1, 192.168.*, 10.*, any private-network origin). Affects every major browser, with different error copy per browser.

Click to enlarge

Runtime-verified in Brave 149. DevTools Network showed net::ERR_BLOCKED_BY_LOCAL_NETWORK_ACCESS_CHECKS on every iframe fetch to http://localhost:3006. Studio surfaces this to the user as an "SDK Not Initialized" dialog because from Studio's perspective, no post-message came back from the iframe.

Note related to the "studioSdk is not initialised" entry in section SDK initialization. The Studio-side symptom is identical, but the root cause here is a browser-level network block, not a missing init() call.

Underlying cause. Studio is served from https://app.contentstack.com (public HTTPS). Your dev server is http://localhost (private, plain HTTP). Every modern browser rejects the private HTTP iframe inside a public HTTPS page. Two overlapping mechanisms:

1. Mixed content: browsers reject http:// subresources from an https:// page. Blocks Safari, Firefox, and any browser without PNA.
2. Private Network Access (PNA), Chromium-only extra check: even HTTPS subresources going from a public page to a private address need opt-in. Brave enforces by default, Chrome / Edge behind a flag.

Either way, the block is at the browser layer. No CORS header, CSP change, or SDK setting can undo it from Studio's side or yours.

Symptoms by browser:

The one fix that works in every browser. Serve your dev server over HTTPS with a locally-trusted certificate. See Serve your canvas-app over HTTPS locally, a full walkthrough with per-framework configs for Vite, Next.js, Remix, Astro, Nuxt, Angular, Webpack, CRA, custom Node/Express, and Docker Compose (~5 min, one-time setup per machine).

Per-browser dev-only escape hatches: re-enable defaults when you're done:

Two runtime-render components that are not interchangeable. Mounting the wrong one, or missing one entirely, is the second-most-common canvas failure after PNA.

"Use Studio Canvas Component" overlay shows on the canvas

Note related to the "Use Studio Canvas Component" overlay entry in section Studio project + canvas (above). Same symptom described from the renderer-mix-up angle. Both entries retained.

Your canvas route is mounting <StudioComponent /> instead of <StudioCanvas />. Studio detects the wrong mount and overlays guidance.

Fix: In the file your project's Canvas URL points at, replace <StudioComponent /> with <StudioCanvas />. The two are not interchangeable. <StudioCanvas /> self-mounts from URL params Studio appends, no props needed:

import { StudioCanvas } from "@contentstack/studio-react";
export default function CanvasRoute() {
  return <StudioCanvas />;
}

Overlay disappears on next canvas reload.

If your problem is a template not found for a URL, fetchCompositionData returning null, "Composition Not Found", published-vs-draft mismatch, composable_uid mismatch, or Studio-panel-blank-but-fetch-works asymmetry, jump here.

Your app has per-template routes (app/blog/[slug]/page.tsx) that don't exist, OR you have no catch-all route (app/[[...slug]]/page.tsx) mounting <StudioComponent />. Studio's URL pattern resolution runs INSIDE csStudio.fetchCompositionData({ url }). It doesn't need per-template routes in your router, but it does need SOMEONE to fetch and render.

Runtime-verified. Navigating a Vite React-Router SPA to an unregistered URL falls back to the SPA shell HTML but React Router matches no route, which leaves an empty body, so visitors see nothing. Studio itself surfaces this as a "Template Did Not Load" banner with the composition UID and failed URL pattern.

Fix (the recommended default is one catch-all route):

// Next.js App Router — app/[[...slug]]/page.tsx
export default async function StudioRoute({ params, searchParams }) {
  const searchQuery = new URLSearchParams(searchParams as Record<string, string>).toString();
  const url = "/" + (params.slug ?? []).join("/");
  try {
    const specOptions = await csStudio.fetchCompositionData({ url, searchQuery });
    return <StudioRouteClient specOptions={specOptions} />;
  } catch {
    notFound();
  }
}

// React Router (Vite SPA) — src/main.tsx
<Routes>
  <Route path="/canvas" element={<CanvasRoute />} />
  <Route path="*" element={<StudioRoute />} />   {/* catch-all */}
</Routes>

Alternative fix: add the specific per-template route the composition's URL pattern requires. See Wire template preview routes.

Runtime crash. specOptions is the required prop. The SDK doesn't fall back to a default.

Fix: Fetch first, then pass:

const { specOptions, isLoading } = useCompositionData({ url });
if (isLoading) return <Loading />;
if (!specOptions?.spec) return <NotFound />;
return <StudioComponent specOptions={specOptions} />;

data is a separate Record<string, any> prop for Component Default Data (external runtime values you inject alongside CMS data). It is NOT where the resolved composition goes. Runtime-verified: passing specOptions as data (and omitting the required specOptions prop) crashes the render subtree.

Fix:

<StudioComponent
  specOptions={specOptions}        // resolved composition — required
  data={{ livePricing: pricing }}  // external data — optional Record<string, any>
/>

See Component Default Data.

You passed a query object with keys that aren't valid at the top level of CompositionQueryInput. The SDK only accepts compositionUid, url, templateContentTypeUid (and their combinations, plus searchQuery for SSR).

Common misuses:

// ❌ Wrong — these keys are options, not top-level query fields
useCompositionData({ contentTypeUid: "blog_post", templateEntryUid: slug });
useCompositionData({ variantAlias: "winter-sale", url: "/blog/x" });
useCompositionData({ locale: "fr-fr", url: "/blog/x" });

Fix: Put query-identifiers in the FIRST arg, options in the SECOND arg (CompositionQueryOptions):

useCompositionData(
  { templateContentTypeUid: "blog_post" },
  { templateEntryUid: slug, variantAlias, locale },
);

The value you passed isn't the composable slug. You passed the entry UID by mistake.

Runtime-verified. useCompositionData({ compositionUid: "blt2ec5a39fff004468" }) (entry UID) returns "Composition not found. The requested composition does not exist or has been deleted." The same call with the slug, useCompositionData({ compositionUid: "hero_strip" }), returns hasSpec: true.

Fix: compositionUid accepts the composable_uid slug, the value in the entry's composable_uid field (e.g. "hero_strip", "pdp_marketing_band", "blog_post_template"), NOT the entry UID (blt…). In Studio, open your composition and go to the right-panel Settings, where "Composable UID" is shown. You can also read it via curl against the compositions CT.

csStudio.fetchCompositionData(queryOptions, options) requires searchQuery on the first arg for SSR (the type is CompositionQueryForSSRInput = CompositionQueryInput & { searchQuery }). The SDK reads searchQuery to apply Studio's iframe overrides and Live Preview's draft hash.

Fix:

// Next.js App Router
const searchQuery = new URLSearchParams(searchParams as Record<string, string>).toString();
const specOptions = await csStudio.fetchCompositionData({ url, searchQuery });

// Next.js Pages Router
const searchQuery = context.req.url.split("?")[1] ?? "";

// SSG / build-time
const specOptions = await csStudio.fetchCompositionData({ url, searchQuery: "" });

Runtime-verified. csStudio.fetchCompositionData({ url: "/blog/does-not-exist" }) rejects the promise with "Entry not found for content type: blog_post". It does NOT resolve with { hasSpec: false }. If you don't handle it, your framework treats it as a server error and renders a 500.

Fix: Wrap in try/catch, classify the error id, and call the framework's not-found API. Do not add a hasSpec check as a "backstop": there is no empty-but-resolved state for it to catch. Same rule, stated once for all frameworks: Rule 5: wrap the fetch.

const NOT_FOUND_IDS = new Set([
  "COMPOSITION_NOT_FOUND",
  "COMPOSITION_NOT_FOUND_BY_URL",
  "PREVIEW_ENTRY_NOT_FOUND",
]);

let specOptions;
try {
  specOptions = await csStudio.fetchCompositionData({ url, searchQuery });
} catch (error) {
  // Next App Router; or return { notFound: true } for getServerSideProps
  if (NOT_FOUND_IDS.has(error?.id)) notFound();
  throw error;  // a real failure must stay a 5xx, not become a 404
}
return <StudioComponent specOptions={specOptions} />;

useCompositionData returns a discriminated union LoadingState | ErrorState | SuccessState. During load and error states, specOptions is null. Passing it straight to <StudioComponent> fails strict TS.

Fix: Guard until TS narrows to SuccessState:

const { specOptions, isLoading, error } = useCompositionData({ url });
if (isLoading) return <Loading />;
if (error) return <ErrorState message={error instanceof Error ? error.message : String(error)} />;
if (!specOptions?.spec) return <NotFound />;
return <StudioComponent specOptions={specOptions} />;

Note error is typed NonNullable<unknown> in ErrorState. Narrow with instanceof Error before reading .message, or use String(error).

Same class as the first entry in this section, but worth calling out. These fields are only valid in the second-arg options object:

// ❌
useCompositionData({ url, variantAlias: "B" });
csStudio.fetchCompositionData({ url, searchQuery, locale: "fr-fr" });

// ✅
useCompositionData({ url }, { variantAlias: "B" });
csStudio.fetchCompositionData({ url, searchQuery }, { locale: "fr-fr" });

Studio surfaces this as a banner on the canvas showing the composition UID and URL pattern that failed to resolve. The template's URL pattern doesn't match a route on your site that mounts <StudioComponent />.

Fix paths (in order of likelihood):

1. Add a catch-all route mounting <StudioComponent />, recommended default. See Composition load: Templates 404.
2. Edit the template's URL pattern in Studio: click the pencil icon in the canvas toolbar to open the Edit URL modal (see Connected content type: Editing the URL).
3. Confirm the route mounts <StudioComponent /> and not <StudioCanvas />. They're not interchangeable.

The connected entry doesn't have the data the template binds to.

Fix: Switch the Preview Entry from the canvas toolbar (the swap icon) to an entry that has the fields populated. Or populate the current entry's fields in Contentstack.

If your problem is an empty component palette, a dropped component that won't render, bindings resolving to undefined at render time, a Repeater rendering 0 items, static_value keys not found, JSON-RTE embeds rejected, or hydration / SSR mismatches, jump here.

Components are registered after Studio's canvas iframe loads, so it doesn't see them.

Fix: Call registerComponent / registerComponents before the canvas mounts. The cleanest way is to register at app boot, in the same module that imports @/lib/contentstack:

// src/lib/contentstack.ts
import { studioSdk, registerComponents } from "@contentstack/studio-react";
import { components } from "@/studio/components";

studioSdk.init({ … });
registerComponents(components);

The composition spec references a component type string that doesn't match anything registered. Runtime-verified. Walking a resolved specOptions.spec.ui tree shows every type the composition requires. If a type isn't registered, the SDK renders a fallback.

Fix:

1. In DevTools console, dump the type names in the spec:

   12345

   const { specOptions } = useCompositionData({ url });
   const types = new Set();
   const walk = n => { n?.type && types.add(n.type); (n?.children ?? []).forEach(walk); Object.values(n?.slots ?? {}).forEach(s => (s ?? []).forEach(walk)); };
   walk(specOptions.spec.ui);
   console.log([...types]);

2. Compare with your registerComponent calls. Add a registration for any missing type.
3. If the case is off (Hero vs hero), the type strings must match exactly.

The default Suspense fallback is null. Provide your own:

import { Suspense } from "react";
function PaletteFallback() { return <div className="loading-card">Loading…</div>; }
// Wrap your top-level StudioComponent / StudioCanvas render in your own Suspense.

The SDK uses <Suspense fallback={null}> internally: wrapping at your app's top level provides the fallback the SDK's inner boundary defers to.

Live Preview isn't initialised, or onEntryChange isn't wired to your render.

Runtime-verified. With ContentstackLivePreview.onEntryChange(refetchSpec) wired to useCompositionData's refetchSpec, firing the callback triggers a fresh Content Delivery API (CDA) fetch of the composition + template + entry, confirmed via Network tab (three new requests appear immediately after each callback fire).

Fix:

1. Confirm ContentstackLivePreview.init({ … }) runs at app boot.

2. Wire onEntryChange to your render or refetch:

   1234

   const { refetchSpec } = useCompositionData({ url });
   useEffect(() => {
     ContentstackLivePreview.onEntryChange(refetchSpec);
   }, [refetchSpec]);

3. Confirm your stack has Live Preview enabled stack-wide (in your stack, open Settings, then Visual Experience, then General).
4. Check the Preview Token in your .env.local matches the one on Contentstack.
5. See Install Live Preview.

clientUrlParams.host is wrong for your region.

Fix: Match it to your region's app host (US: app.contentstack.com, EU: eu-app.contentstack.com, etc.). See Install Live Preview: Non-US regions.

Runtime-verified benign. This error fires when your app loads outside a Studio iframe (i.e. during regular dev / on a visitor URL). The SDK's post-message channel tries to broadcast registered components to the parent frame. If no parent is listening (because there is no Studio iframe wrapper), the SDK logs this error.

Fix: None needed: this is expected behavior outside Studio. Component registration still succeeds. Only the "notify Studio's editor iframe" broadcast fails, and Studio isn't listening because it isn't there. When your app loads INSIDE Studio's canvas iframe, the broadcast succeeds silently.

Silence the console noise (optional) by only registering components when you detect a Studio iframe context, but the recommended pattern is to leave it alone.

curl -fsSL https://studio-documentation.contentstackapps.com/install.sh | sh

Then describe what you're seeing, e.g. "my canvas iframe is blank", "edits don't reflect in real time", "401 on every fetch", "'Either compositionUid, url, or templateContentTypeUid is required' error". The LLM walks the same diagnostic tree and offers to fix what it finds.

If you've worked through this page and the canvas still doesn't render, open an issue with:

• What you see (error text, screenshots if helpful).
• Which phase failed (Setup + install / SDK initialization / Studio project + canvas / Composition load / Runtime render).
• Browser console output during the failure, especially anything starting [Composable Studio SDK].
• DevTools Network tab: the status code and response body of the request to your canvas URL.

That triages fast.
