Design Panel

Freeform-only surface. The Design tab renders only when Enable Freeform Feature is on for the Studio project. With Freeform off, the right panel collapses to Settings only, no styling surface, for any component (built-in or BYOC). This page lives under the Freeform chapter for that reason. If you need the Design tab, enable Freeform first. It doesn't force you to use Freeform templates. It exposes the full right-panel chrome (Settings + Design + Data).

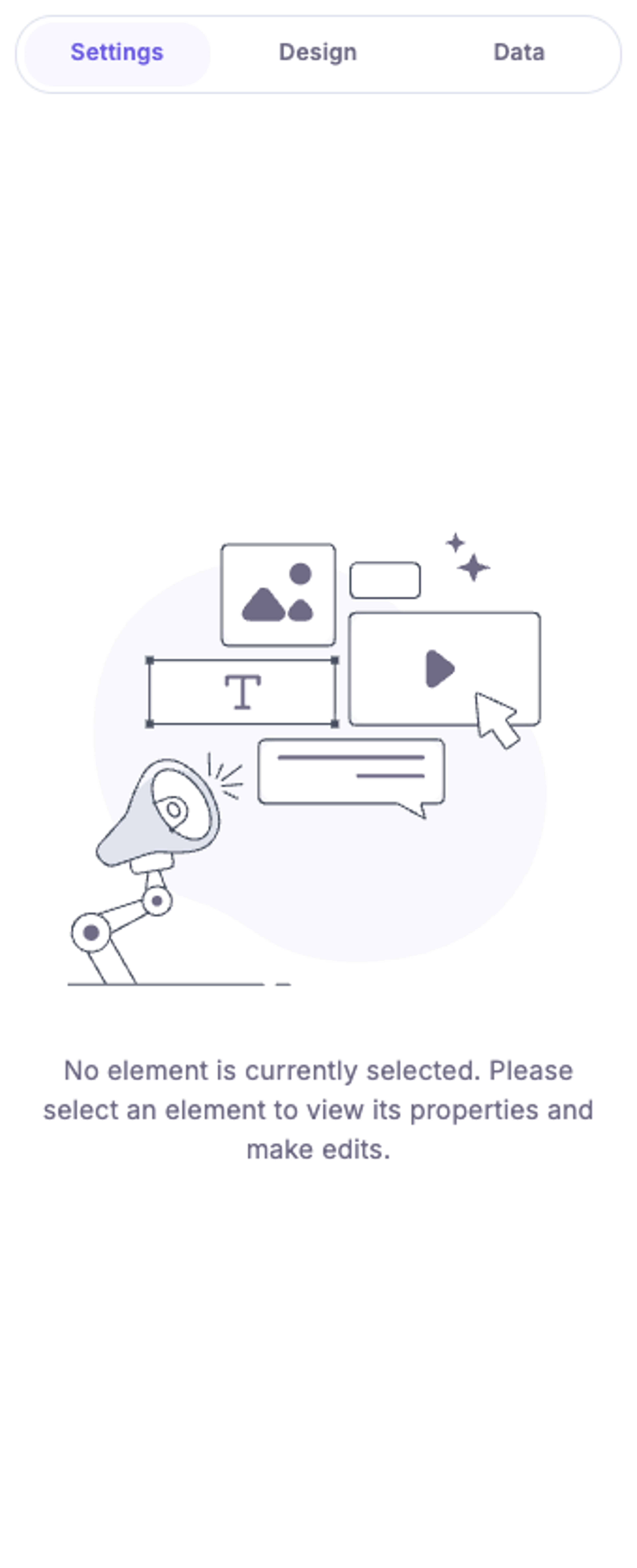

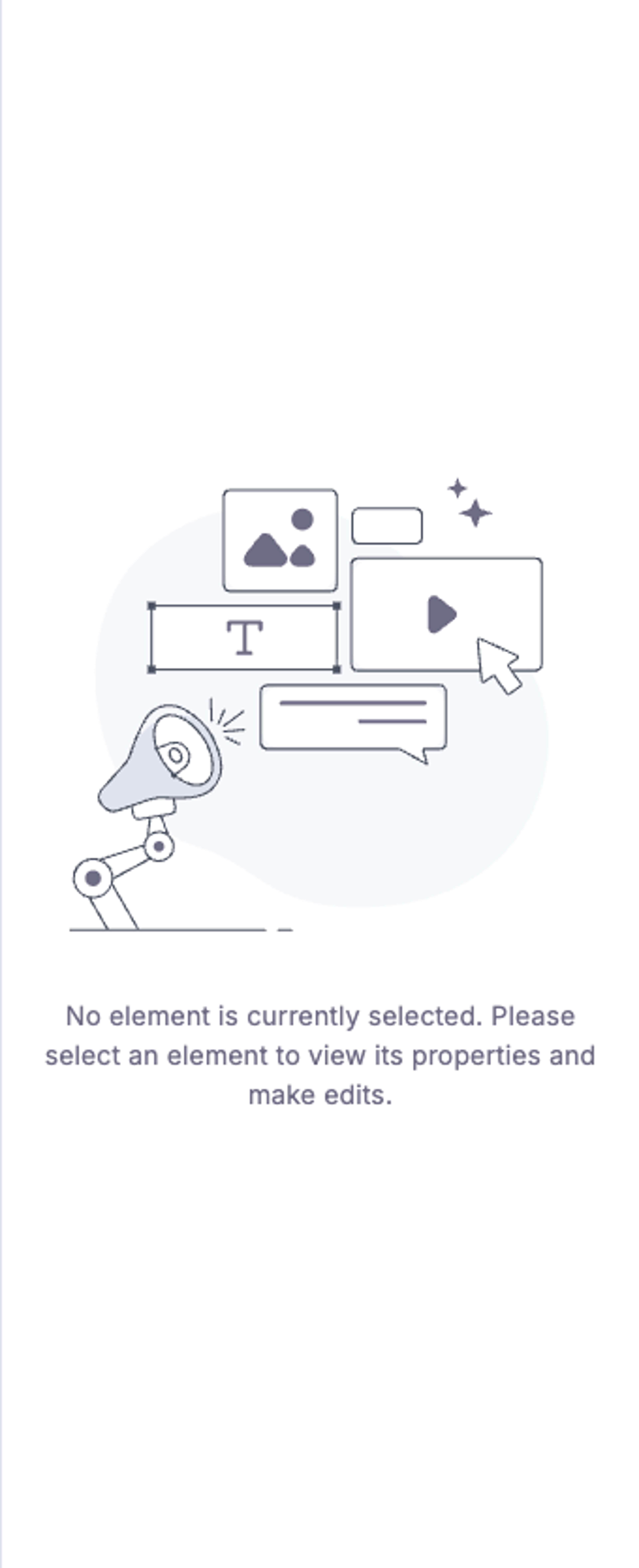

Freeform ON: full right-panel chrome	Freeform OFF: Settings only, no tab strip
Click to enlarge	Click to enlarge
Settings + Design + Data tabs across the top. Selecting a component reveals colour / spacing / typography / border / shadow / layout controls on the Design tab.	No tab strip. Selecting a component only exposes the Settings-level prop editors, no design controls anywhere in Studio.

The Design tab in the canvas right panel is where authors apply styles to selected components: colours, spacing, typography, borders, shadows, layout, visibility.

It pairs with Design Tokens. The Design panel is the UI. Design tokens are the values that populate the dropdowns and pickers. The right-panel tab structure is Settings + Design + Data. See The Data tab for the full layout.

In the right panel, open the Design tab (sibling to Settings and Data, all three visible only when Freeform is enabled).

Visible when (in addition to Freeform being on):

• A component is selected on the canvas
• The selected component's registry entry includes styles configuration (or is one of Studio's built-in components, which always have styles)

If a selected component shows no Design tab even with Freeform on, its registration didn't declare any style groups. See Component schema: styles for the registration shape.

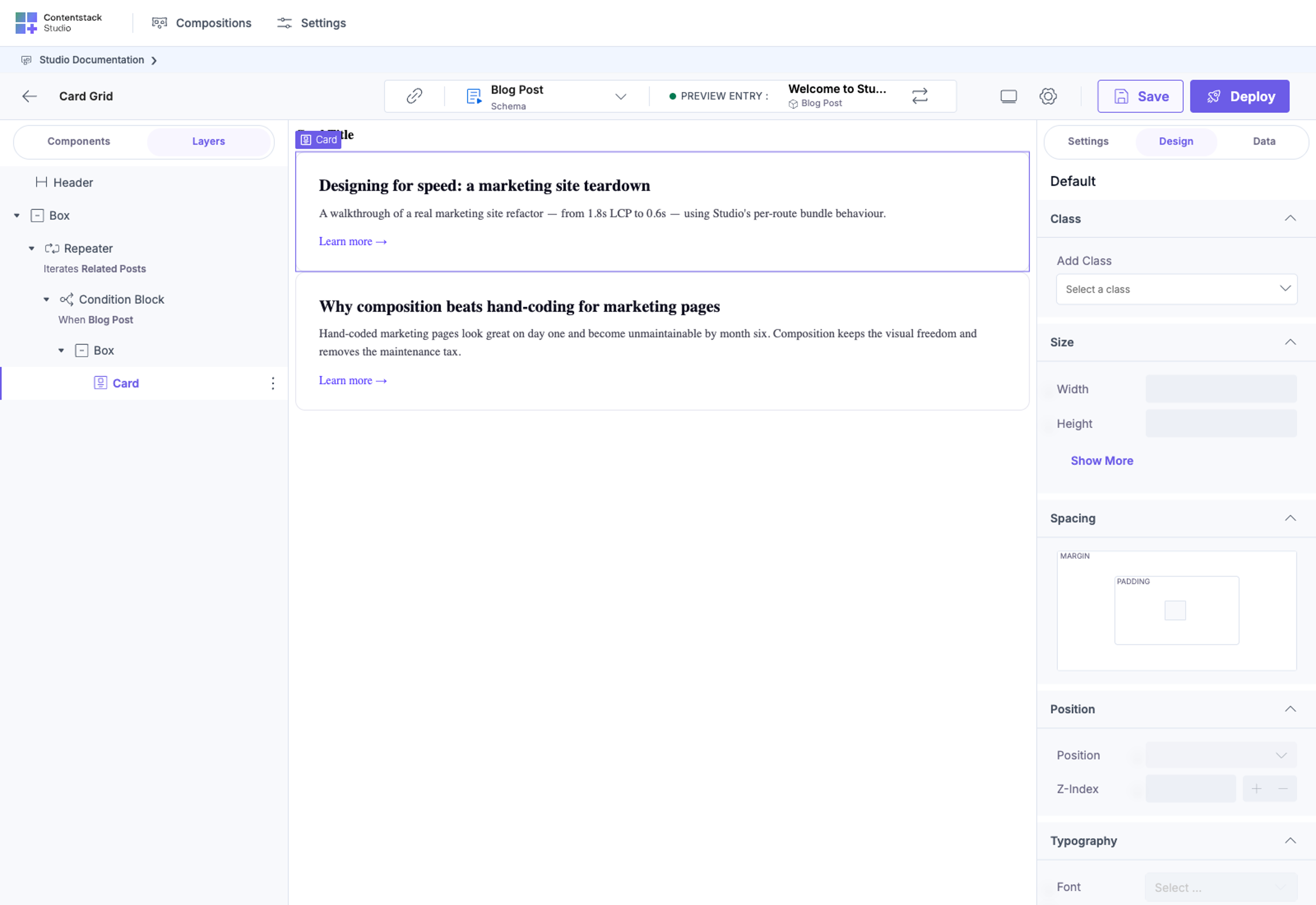

Click to enlarge

Studio's Design panel covers the standard CSS surface, organised into sections:

The exact list visible depends on the component's styles.styleSections configuration. By default all sections show, but you can narrow per component to keep the panel focused.

The Design panel applies styles in three modes. Pick what fits your workflow:

The picker pulls from your registered design tokens. Colors come from your brand palette, spacing from your scale, typography from your text styles.

• Pro: Brand-consistent
• Pro: Updating a token updates every component using it
• Pro: Authors can't go off-brand
• Con: Requires upfront token registration

If you've registered design classes, utility classes (Tailwind-style) or composite styles ("card-elevated", "button-primary"), they appear in the Design panel as picker options.

import { registerDesignClasses } from "@contentstack/studio-react";

// registerDesignClasses takes an array of class NAMES (with optional display
// names). The actual CSS lives in your stylesheet — Studio applies the class
// name, your CSS provides the rules.
registerDesignClasses([
  { name: "card-elevated", displayName: "Card — elevated" },
  { name: "button-primary", displayName: "Button — primary" },
  "subtle",  // shorthand: name === displayName
]);

/* in your stylesheet — Studio applies `.card-elevated`, your CSS styles it */
.card-elevated {
  background-color: var(--token-color-surface-default);
  box-shadow: 0 4px 12px rgba(0, 0, 0, 0.08);
  border-radius: 12px;
}

> **`--token-*` is the SDK convention** for consuming design tokens — Studio emits every registered token as `var(--token-${section}-${name})` and the SDK's `DesignTokenCssVariable` type enforces it. Studio's internal UI uses a separate `--color-base-*` vocabulary for its own chrome; don't consume those from your components.

Authors pick Card — elevated from a dropdown. Studio applies the class to the component.

Authors can type arbitrary CSS values directly: width: 320px, background: linear-gradient(...), etc. This bypasses your design system.

Decide per project which styling modes authors can use. Three levels:

Set the level globally via registerDesignTokens options (it applies project-wide, not per-component). Most enterprise teams start at tokens: keeps the design system intact. Arbitrary is useful for prototyping, brittle for production.

The Design panel includes a breakpoint switcher: design for desktop, then switch to tablet / mobile and adjust per-breakpoint.

Studio applies the right styles per viewport. Authors see the canvas update as they switch breakpoints. What's hard in code (per-breakpoint padding overrides, font-size scaling) is a single click in the panel.

Configure custom breakpoints via the SDK:

import { registerBreakpoints } from "@contentstack/studio-react";

// First entry must be the default (no media query). Others use a CSS media
// query string. `previewSize` controls the canvas frame dimensions when the
// author switches to that breakpoint.
registerBreakpoints([
  {
    id: "default",
    displayName: "Desktop",
    previewSize: { width: 1200, height: 800 },
  },
  {
    id: "tablet",
    displayName: "Tablet",
    query: "(max-width: 1024px)",
    previewSize: { width: 768, height: 1024 },
  },
  {
    id: "mobile",
    displayName: "Mobile",
    query: "(max-width: 640px)",
    previewSize: { width: 375, height: 812 },
  },
]);

Some design properties accept bindings. See CMS Binding. For example:

• A section's background colour bound to template.brand_color so each entry's brand drives the colour
• An image's src bound to template.cover_image so the entry provides the asset
• A heading's font size bound to template.heading_size for entry-driven typography scale

When a design property is bindable, the right panel shows a binding chip next to the control, same UX as binding component props.

Your registered components opt into Design panel control via the styles field on the registry entry:

registerComponent({
  type: "Card",
  component: Card,
  // ...
  styles: {
    card: {
      displayName: "Card",
      defaultStyles: {
        backgroundColor: "var(--token-color-surface-default)",
        borderRadius: "12px",
        padding: "24px",
      },
      styleSections: ["spacing", "background", "border", "shadow"],
    },
    title: {
      displayName: "Title",
      defaultStyles: {
        fontSize: "var(--token-typography-fontSize-lg)",
        fontWeight: "var(--token-typography-fontWeight-bold)",
      },
      styleSections: ["typography", "spacing"],
    },
  },
});

What this does:

• Registers two style groups: card (the wrapper) and title (the heading inside)
• Each group declares its default styles (CSS that ships with the component)
• styleSections narrows which Design panel sections show per group: card exposes spacing, background, border, shadow. title exposes typography and spacing only

Authors see two style groups in the Design panel for this component, each scoped to its relevant property set.

Registering a group is only half of it. Studio compiles each group into one CSS class and hands it to your component as a prop. Your component decides where it lands:

• the default group arrives as className
• every other group arrives as a prop named exactly like the group key

So the two groups above are delivered as className and title:

function Card({ className, title, heading, children }) {
  return (
    <div className={className}>
      <h2 className={title}>{heading}</h2>
      {children}
    </div>
  );
}

A group whose class never reaches the DOM cannot be styled. The author's edits are stored on the composition, but nothing renders, and the Design panel tells them the component isn't using the group.

Avoid naming a group after a prop you already register (the prop is applied last and overwrites the group's classes), and avoid forgetting to spread className when your component sets wrap: true. The wrapper element Studio adds does not carry your styles.

Once a component is registered with styles:

1. Drop the component on the canvas
2. Select it
3. In the right panel, open the Design tab
4. Pick the style group (if multiple)
5. Adjust properties from the section pickers

Changes apply live. The canvas reflects them immediately. Save persists them to the composition record.

Register tokens before components. Components reference tokens via CSS variables. Tokens have to be registered first.

Narrow styleSections per component. Showing every section for every component bloats the panel. A button doesn't need overflow controls. A card doesn't need transform. Narrowing keeps authors focused.

Set sensible defaultStyles. Defaults populate the component on drop, same idea as defaultValue for props. Empty defaults mean the component starts unstyled.

Use the bindings story for varying styles per entry. Don't fork sections to vary background colour per page. Bind the colour to an entry field instead.

Decide dynamic vs tokens vs arbitrary early. Switching from arbitrary to tokens mid-project means re-styling everything. Setting the level early prevents drift.

• Design Tokens: the values that populate the panel
• Component schema: styles: registering style groups
• CMS Binding: binding design properties to data
