A Modular Block field in Contentstack is a list where each item can be one of several block types, and each block type carries its own schema. Consider a content type with a body_blocks field whose items can be a hero, a feature_grid, a quote, or a cta: same list, four different shapes, mixed in any order the author chooses.

That heterogeneity is what makes Modular Blocks different from a plain Group-with-multiple: true: a Repeater alone can iterate the list, but it has no way to know which of the four schemas it's looking at on any given iteration, and therefore no way to bind the right component or pick the right design.

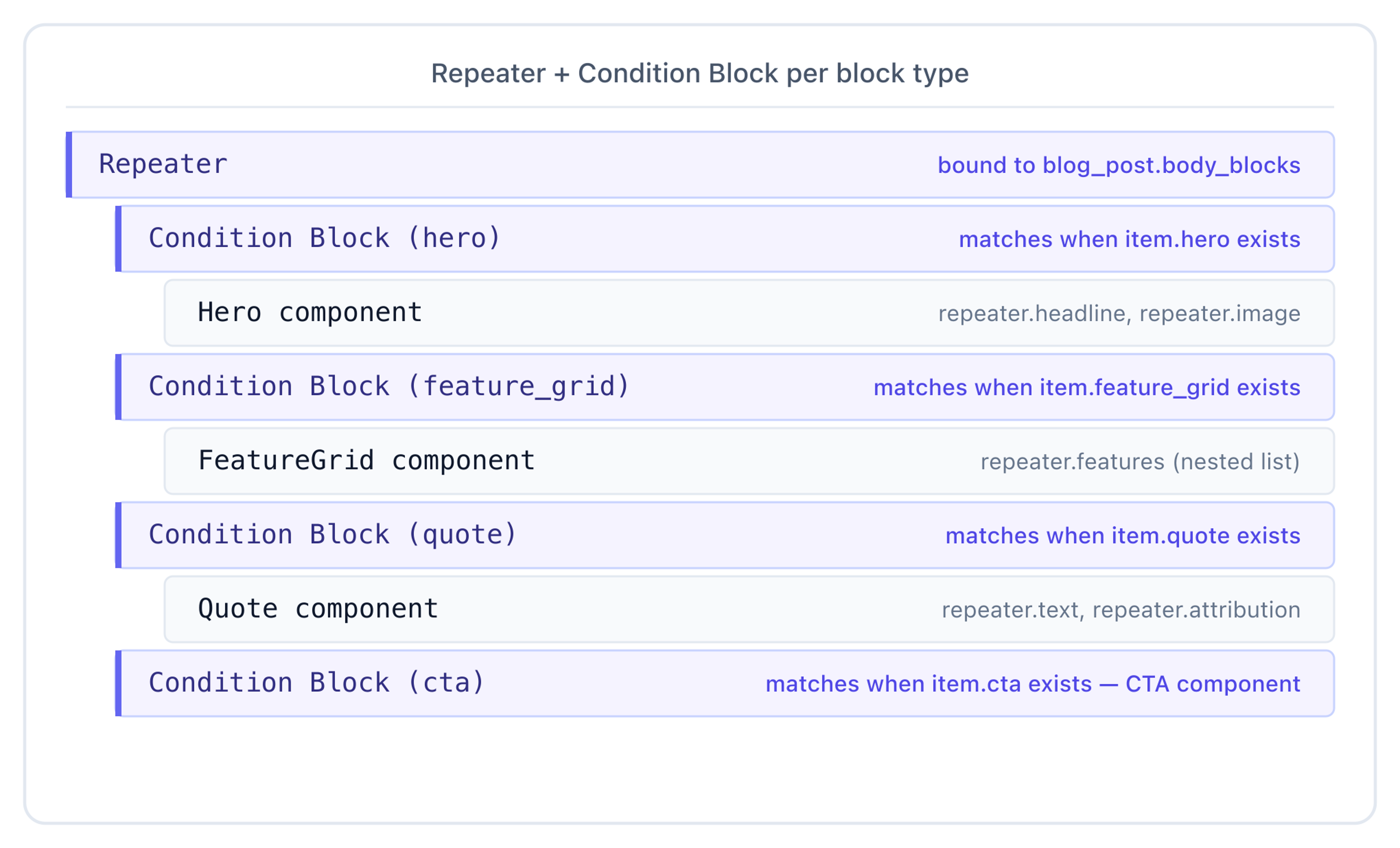

The pattern Studio uses to render a Modular Block field is Repeater + one Condition Block per block type.

A Repeater bound to a multi-value field renders its contents once per item. That works perfectly when every item shares the same schema: a list of testimonials, a list of related posts. The single design inside the Repeater applies uniformly to every iteration.

Modular Blocks break that assumption. On iteration 1 the item might be { hero: { headline, image } }. On iteration 2 it might be { quote: { text, attribution } }. Iteration 3, another hero. The fields aren't the same, so a single fixed design can't bind to them: repeater.headline is meaningful for a hero item but undefined for a quote item.

What you actually want: one design per block type, and Studio picks the matching design for each iteration item based on the block uid present on it. That's what a Condition Block does.

Three rules to keep in mind:

1. The Repeater binds to the Modular Block field itself. Not to one of the block types, to the whole list.
2. Each Condition Block narrows the iteration to ONE block-type-uid. It's the condition item is a hero (or feature_grid, etc.). Studio evaluates these per-iteration; the matching condition's children render, the others are skipped.
3. Components inside a Condition Block bind via repeater.<field>, and the field set available to them is that block type's schema, not the union. This is the payoff: inside the hero condition the picker shows headline, image, cta_label; inside the quote condition it shows text, attribution, author_role. No null-checks, no if (item.hero) gymnastics.

The render order is the data's order. Whatever order the author placed the blocks in the entry is the order they appear on the canvas: the Repeater iterates left-to-right, and each item picks exactly one Condition Block.

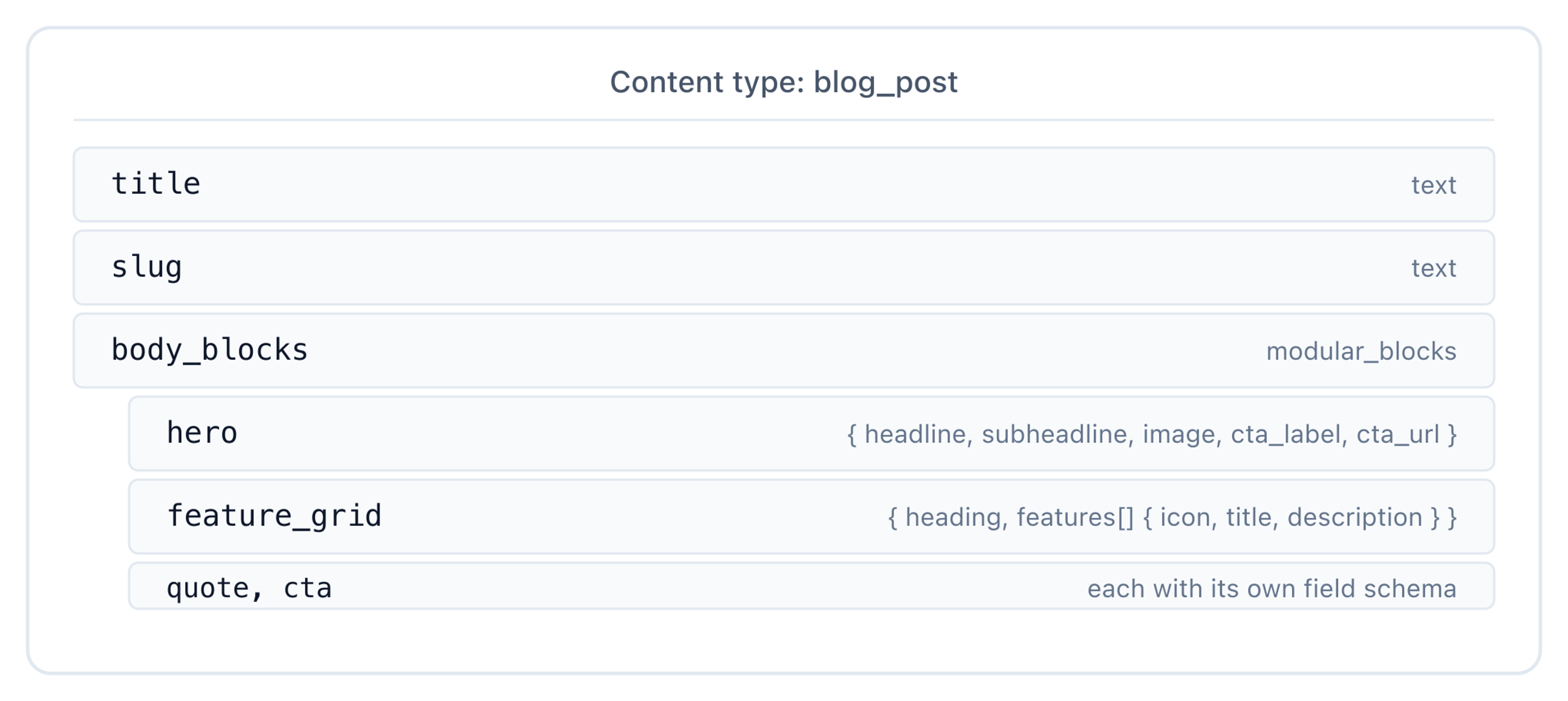

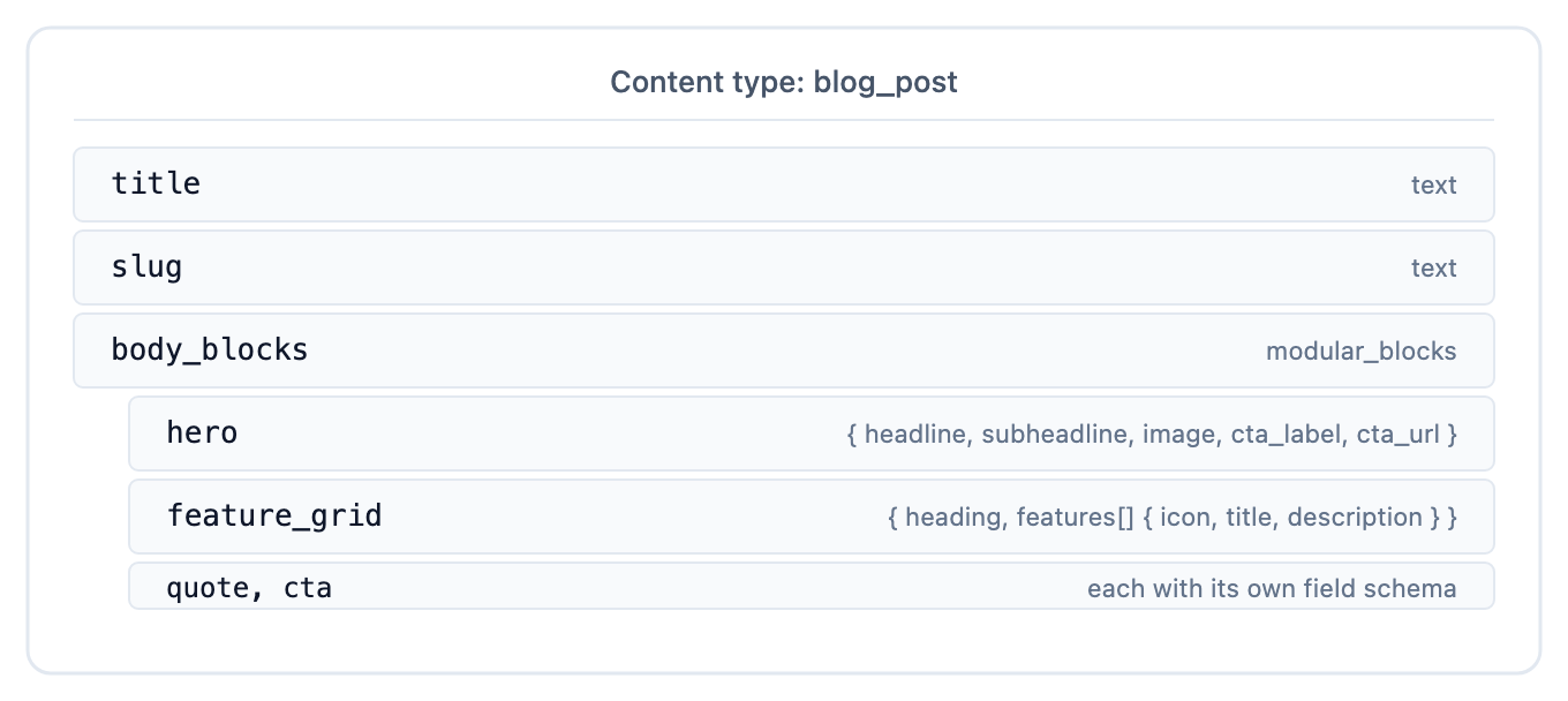

A blog post content type with a Modular Block field body_blocks whose four block types are hero, feature_grid, quote, cta:

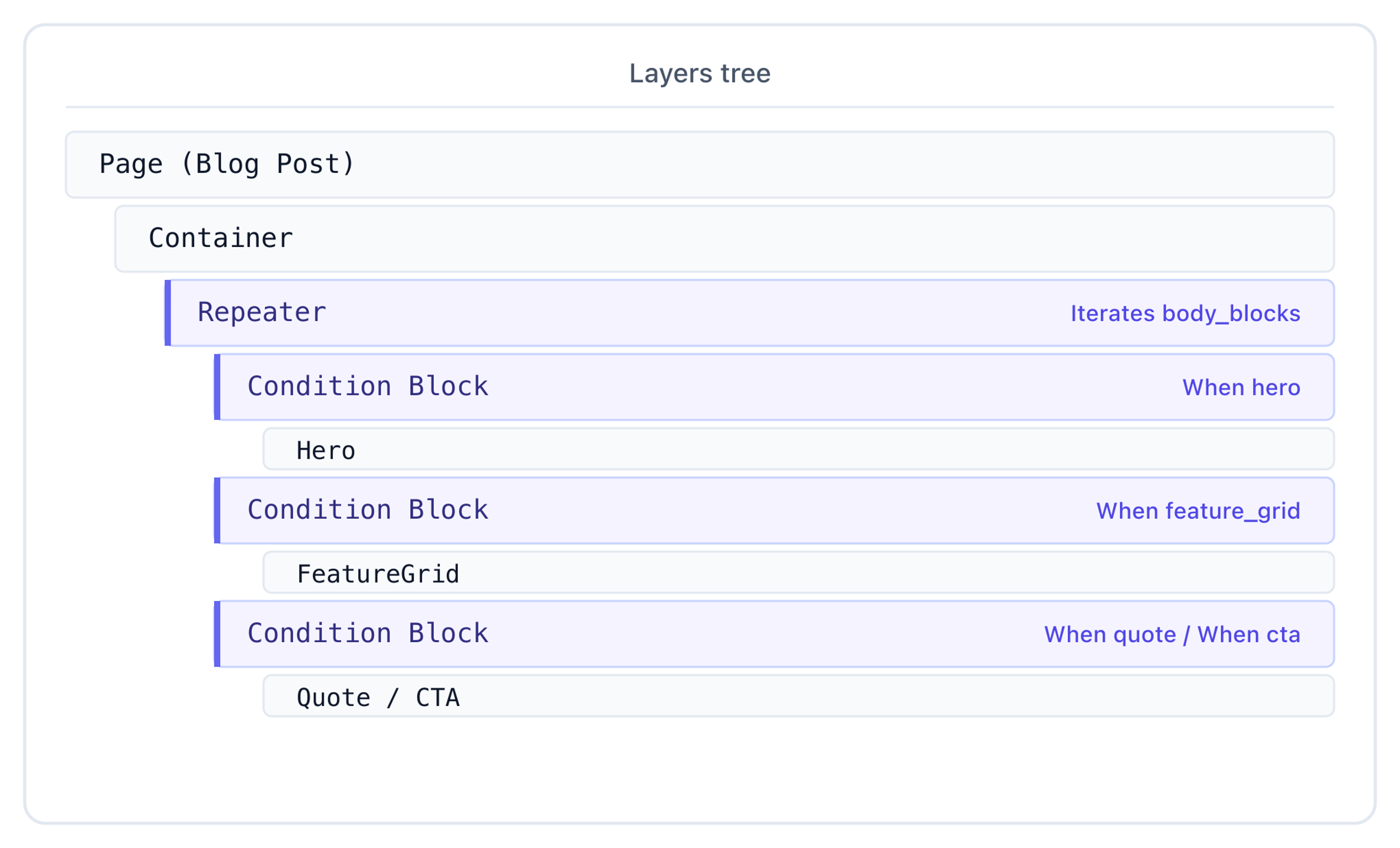

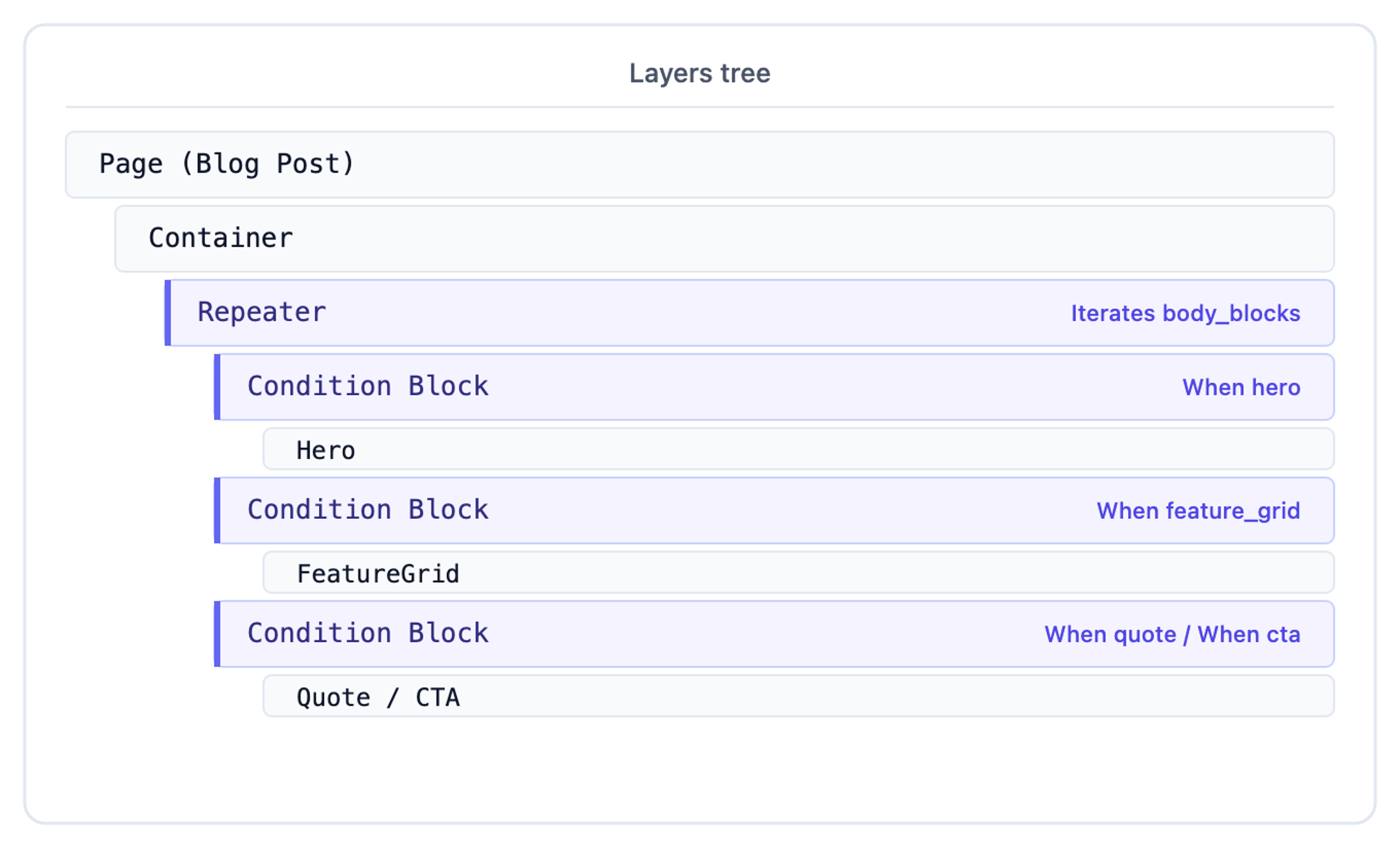

A blog post template with this Modular Block authored on the canvas looks like this in the Layers tab:

Bindings inside each branch:

Block branch	Component	Prop bindings
hero	Hero	headline → repeater.headline, image → repeater.image, ctaLabel → repeater.cta_label
feature_grid	FeatureGrid	heading → repeater.heading, items → repeater.features (a nested list)
quote	Quote	text → repeater.text, attribution → repeater.attribution
cta	CTA	label → repeater.label, url → repeater.url, variant → repeater.style

Given an entry whose body_blocks is [hero, quote, feature_grid, quote, cta], the canvas (with Preview Mode on the Repeater) renders exactly that: Hero, Quote, FeatureGrid, Quote, CTA, in that order.

The Data Picker is scope-aware: it shows different fields depending on what is selected. That's what makes the pattern ergonomic.

• Click the Repeater's Items binding, and the picker shows the page entry's schema. Pick body_blocks. The Repeater is now iterating the modular block list.
• Inside a Condition Block (say, the one matching feature_grid), select the FeatureGrid component and click its heading prop, and the picker shows only the feature_grid block's fields: heading, features. The other block types' fields are not in the picker, because the surrounding condition has narrowed the scope.

Internally, this narrowing is what getFieldSchemaAtPath does when it descends into a Modular Block field: with no block uid in scope it returns a merged schema (the union of all block fields, used by Studio for auto-binding heuristics); with a block uid in scope, exactly what a Condition Block establishes, it returns just that block's schema.

See composable-studio/src/utilities/sectionCompositionAutoBinding.ts (lines ~60–100, getFieldSchemaAtPath + the "blocks" branch) for the source of truth. The same file's doFieldStructuresMatch (line ~197) explains why Modular Blocks are matched loosely during section auto-binding: a section's Repeater is typically wrapped in a single Condition Block, so it only needs ONE common block uid with the page's modular block field, not strict superset/subset equality.

Concretely, to build the body_blocks example from scratch on a blog post template:

1. Drop the Repeater. From the Smart Containers palette, drop a Repeater onto the canvas at the position where the body should render. The Repeater renders as <div style="display: contents"> and adds no visible box: to select it, use the Layers tab, not the canvas.
2. Bind the Repeater's Items. Layers, click Repeater. Right panel, Data tab, click Items. In the picker, select body_blocks from the page entry's fields. The Repeater is now iterating the Modular Block list. Turn on Preview Mode in the Configuration group to see real iterations on canvas.
3. Drop the first Condition Block. Inside the Repeater (use Layers to land it there cleanly), drop a Condition Block. Right panel, Properties, set the condition to When block is hero. The picker scope is now narrowed to the hero block's schema.
4. Drop the Hero component inside the Condition Block. Bind each prop using repeater.<field>, for example headline → repeater.headline. The Data Picker, scoped to the hero branch, only exposes the hero block's fields, so there's nothing to get wrong.
5. Repeat for feature_grid, quote, cta. Each is a sibling Condition Block inside the same Repeater, each narrowed to a different block-type-uid, each holding the component you want to render for that type.
6. Verify on the canvas. With Preview Mode on and the Repeater bound, the canvas now renders the entry's body in source order, with each item picking exactly one Condition Block's design.

The composition JSON for this pattern is just nested nodes: Repeater node, ConditionBlock nodes, Component nodes, with bindings on each. Studio doesn't generate one fused "modular renderer" node; the persisted shape mirrors the Layers tree exactly. That's why the same pattern survives reuse in sections: a section containing Repeater → ConditionBlock(hero) → Hero can be dropped onto any page whose schema includes a Modular Block field that allows hero, and the section's auto-binding code only requires one shared block uid (see the loose-match rule in doFieldStructuresMatch).

Forgetting the Condition Block. Dropping components directly inside the Repeater (no Condition Block layer) means one design tries to render for every block type. Bindings like repeater.headline are undefined whenever the iteration item isn't a hero. You see one block type render correctly and the rest render empty.

Binding to template.X instead of repeater.X. template.* resolves to the page entry. Inside a Repeater, repeater.* resolves to the current iteration item. If you bind headline → template.headline from inside the Repeater, you'll get the page's top-level headline field (if any) on every iteration, never the per-block field. The picker doesn't always make this obvious; double-check the path string.

Missing block types in the design. Modular Blocks let editors choose freely from the union. If your content type defines four block types but your canvas only has three Condition Blocks, the fourth block type produces a gap in the render: the Repeater iterates the item, no condition matches, nothing renders. Either add the missing Condition Block or accept the gap as intentional (e.g. a draft-only block type your front-end deliberately hides).

Trying to compare or sort across block types. A Condition Block fans the design out per block type: there's no single binding context that sees fields from two different blocks side-by-side. If you need cross-block logic (e.g. "show a divider between any two adjacent CTAs"), that belongs in component code, not in Studio's binding graph.

Wrapping the whole list in a single Condition Block. A Condition Block matches one block uid. If you wrap the Repeater itself in a Condition Block, you're saying "only render this Repeater when the page's modular block field is of type X", which isn't what Modular Blocks are. The Condition Blocks belong inside the Repeater, one per type.

A block type's schema can itself contain a Modular Block field: a common shape for recursive content like nested sections, accordion groups, or tabbed layouts. The pattern doesn't change; it just nests.

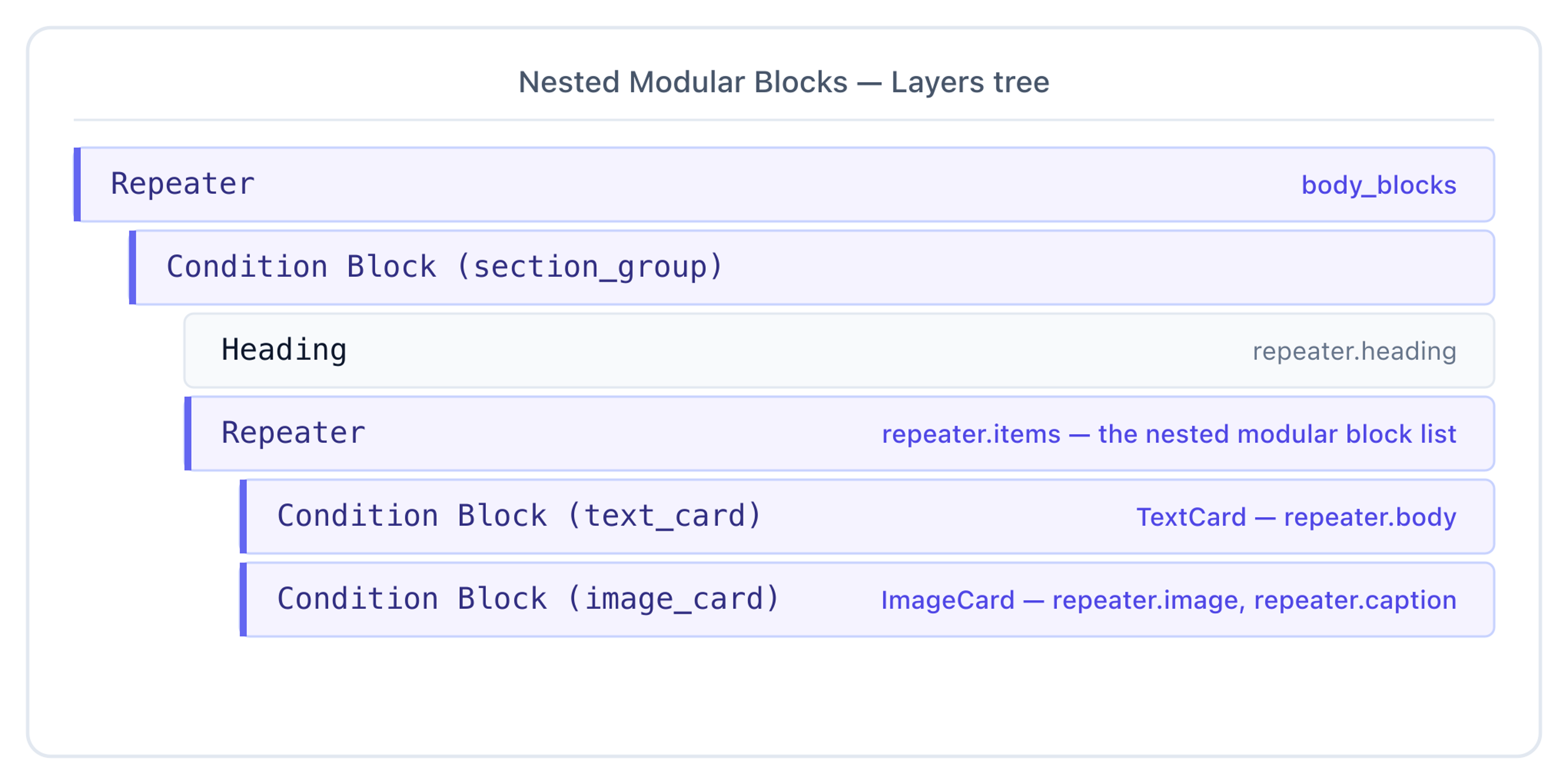

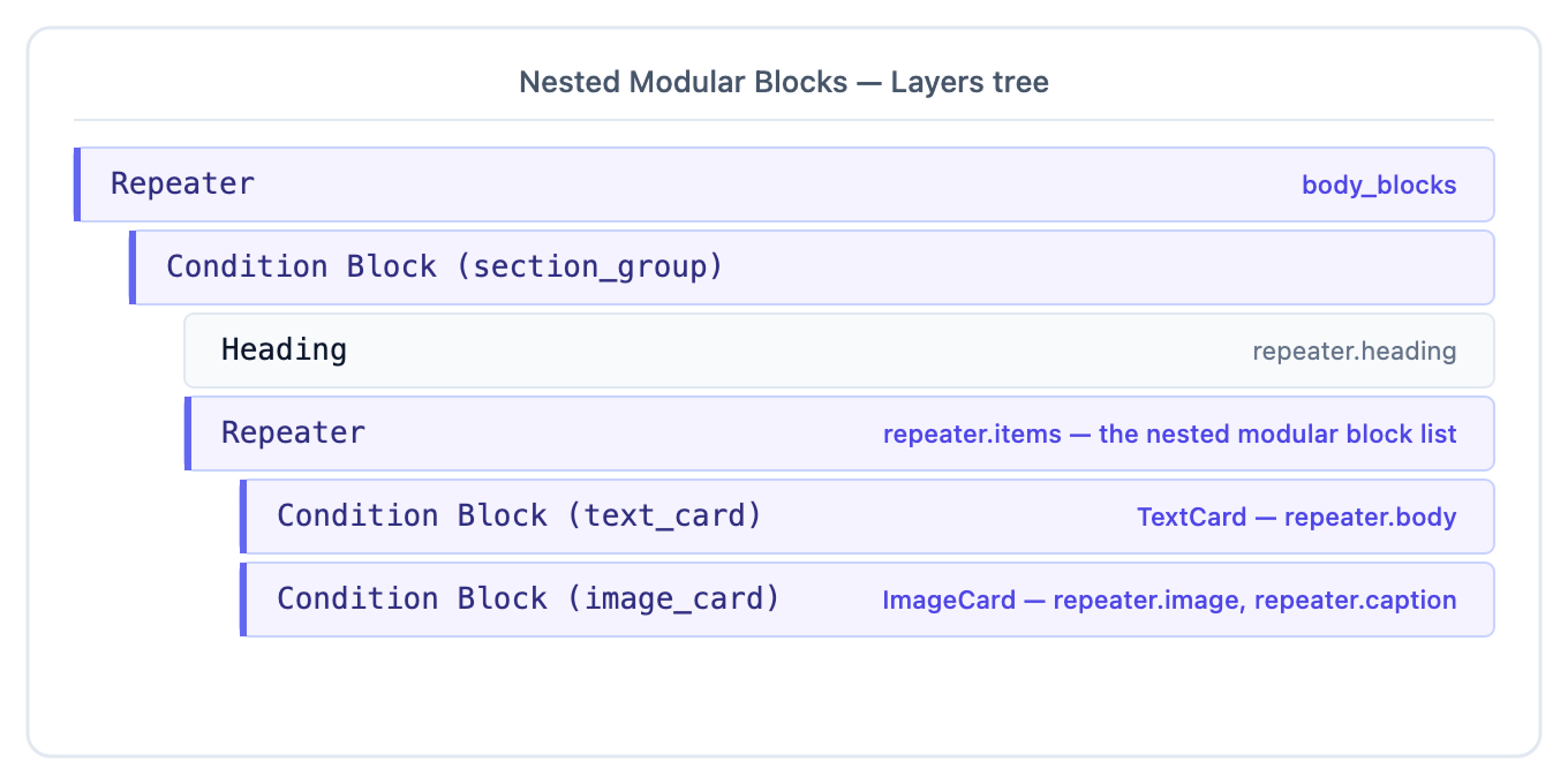

Take a section_group block on body_blocks whose schema is { heading, items[] } where items is itself a Modular Block field allowing text_card and image_card. The Layers tree becomes:

Two things to notice:

• The inner Repeater binds to repeater.items, not template.items. repeater.* always refers to "the iteration item of the nearest enclosing Repeater": once you're inside the inner Repeater, repeater.* refers to the inner iteration item, not the outer one. There's no outerRepeater.* token; if you need the outer context, expose it as a section prop or restructure.
• Section auto-binding stays loose for nested cases too. A section's Repeater of items whose Condition Block matches text_card will bind successfully against a page whose section_group.items allows text_card + image_card + a third type: only one shared block uid is required at each level.

• Repeaters: the iteration primitive on its own
• Condition Blocks: design switching on per-item type
• Reference fields: the same Repeater + Condition pattern, required for both single-CT and multi-CT references
• Section auto-binding: how sections containing this pattern get matched against page schemas
