Binding a Section to CMS data

A Section renders content from a CMS entry. This page is the single canonical explanation of how that happens, the two pieces that make it work: a linked schema (declares the shape the Section expects) and auto-binding (Studio matches that shape to whatever field the Section is dropped over).

Both used to live on separate pages (linked-schema.md, auto-binding.md). They were always the two halves of one topic, so they now live here together.

A Section's linked schema declares the shape of data it expects. When the Section is dropped onto a Template, Studio finds a field on the Template's connected content type with a matching shape and binds the Section to it.

Matching is structural, not name-based. Field names can differ: Studio remaps by position and data type. What has to align is the structure.

Studio matches strongest when the Section is anchored on a reusable structural field type:

Field type	Why it's a great Section anchor
Global Field	Defined once, embedded in many content types unchanged. Guaranteed identical structure everywhere, the strongest match.
Group	Same child types in the same order, so it matches even if names differ.
Modular Blocks	Section narrows to one block. The page's blocks field needs to include that block.
Reference	Matches when the Section and page reference fields list the same set of referenced content types (sorted equality on reference_to).

Picking a Global Field is almost always the right move. It sidesteps every nested-name issue and works across content types by construction.

A single Section can be linked to multiple schemas (different fields on the same content type, or fields across different content types) as long as the structure matches.

Example: a "Featured Card" Section reused across content types. Define a Global Field once:

Build one Featured Card Section linked to gf_featured_card. Embed the Global Field into any content type that needs it, under whatever local name makes sense:

Drop Featured Card on a blog_post Template and it matches hero_card. On a product it matches promo_card. On an event it matches banner. The field UIDs differ. The Global Field guarantees the inside is identical, so the Section binds automatically.

If a content type exposes the Global Field twice (say promo_card and secondary_card), Studio binds to one and shows a picker in the Section's settings so the author can switch.

Field type	Rule
Group / Global Field	Same number of immediate children with the same sorted set of data types. Child names can differ: Studio builds a positional remap (e.g. heading → title).
Modular Blocks	At least one block name in common between the Section's blocks and the page's blocks.
Reference	Same set of referenced content types (sorted equality on reference_to).
Any	Same data_type on the field, same multiple/single flag.

Nested groups caveat. The positional remap is one level deep. If your Section binds a group inside another group, the inner group's name must match on both sides: only top-level names get remapped. Prefer Global Fields for nested shapes. They sidestep the issue because the structure is literally identical wherever you use it.

Studio doesn't look at the page's top-level fields when the Section is dropped. It auto-binds against the scope at the drop location, the schema visible where the Section sits in the tree.

Drop location	Where Studio looks for matches
Root of a page	The page's top-level fields
Inside a Repeater	The schema of the Repeater's iteration item
Inside a Modular Block	The fields of that specific block
Nested (Repeater inside Repeater, block inside group, and so on)	The innermost scope. Scopes chain

Result	What happens
Exactly one match	Studio binds automatically, no manual step. The Data root field in the right-panel Settings shows what the Section is reading from.
Multiple matches	Studio binds to one (the first in schema order). Open the Data root picker to switch. Dropping the same Section twice lets each instance read from a different field.
Zero matches	Section drops unbound. Open the Data root picker to select a compatible target if one exists. Content shows the components' default values instead.

Auto-binding needs a Template's connected content type to match against. A freeform page has none, so nothing matches and a dropped Section renders its components' default values.

The Data root is the per-placement answer to "where does this Section read from?". It is a full data binding, not only a field name, so it can point at:

Target	Typical use
a field of the Template's content type	a Template page: this is what auto-binding fills in for you
a pinned entry	a freeform page: pin the entry in Data, then root the Section at it
a field inside a pinned entry	one group or reference within that entry
a query result	a freeform Collection Section over many entries
the surrounding Repeater item	a Section inside a Repeater, the default there

Set it in Settings, then Data root. The picker is the same data binder used for every other binding, with one difference: it offers only targets whose structure matches what the Section declared. Everything else is greyed out, on the same rules as auto-binding: same shape, names may differ.

Two things follow automatically once a Data root is set:

• The Section's exposed props re-point at the new data, unless you have edited one by hand: a manual edit means the page owns that value from then on.
• Any references the Section needs are added to the entry's fetch, so nested content resolves instead of coming back empty.

	Template	Freeform
Starting state	pre-filled from the Section's linked schema	empty, you pick
Changing it	switches to another matching field	picks any matching target
Clearing it	Section shows component defaults. Restore default brings the linked-schema field back	Section shows component defaults

A Section with no linked schema has no declared shape, so it has no Data root. Those Sections are the same wherever you drop them, which is exactly what makes them useful for footers and divider strips.

Special case: if the surrounding scope itself mirrors the Section's shape (e.g. a Repeater iterating a list of gf_featured_card), the Section binds directly to the iteration item, no wrapper field needed. The Section-inside-Repeater pattern relies on this, see Recipe: card grid with slots.

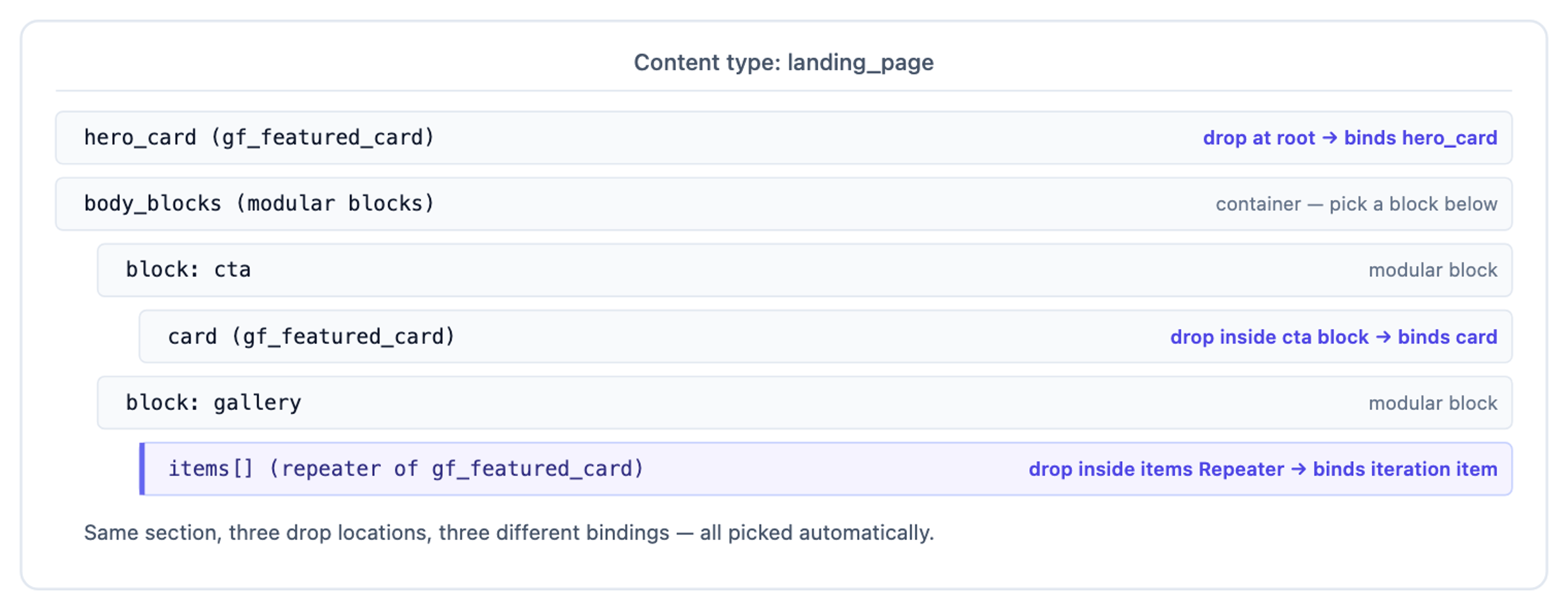

A Featured Card Section anchored on gf_featured_card:

Same Section, three drop locations, three different bindings, all picked automatically.

The "binds automatically" line above is doing real work. Here's what a Template author experiences:

1. They drop the Section. It appears on the canvas with its inner components already showing bound content: heading text populated, image visible, CTA label set. They didn't touch the Data Picker.
2. If the Template's content type matches one the Section was linked to, Studio scopes the Section to the field on the Template's content type that has the same structural shape.
3. If the page has two fields that both match (two embedded gf_featured_card instances, say), Studio binds to one. The Data root picker switches to the other.
4. If nothing matches, the Section still drops but its inner bindings have nothing to resolve: content shows defaults. Either add the new content type to the Section's linked schemas list, or set a Data root manually.

For the Template author the experience is: drop, done. The Section's job is to declare the shape. The Template author's job is to drop it in the right place. Studio does the wiring.

• Sections without a linked schema skip auto-binding entirely, and have no Data root. They have no data to bind. Same content wherever you drop them, useful for purely presentational sections like footers and divider strips.
• If a Section has multiple linked schemas (different content types), Studio matches the schema entry that corresponds to the Template's connected content type. On a freeform page there is no such content type, so the Data root records which linked schema it matched.
